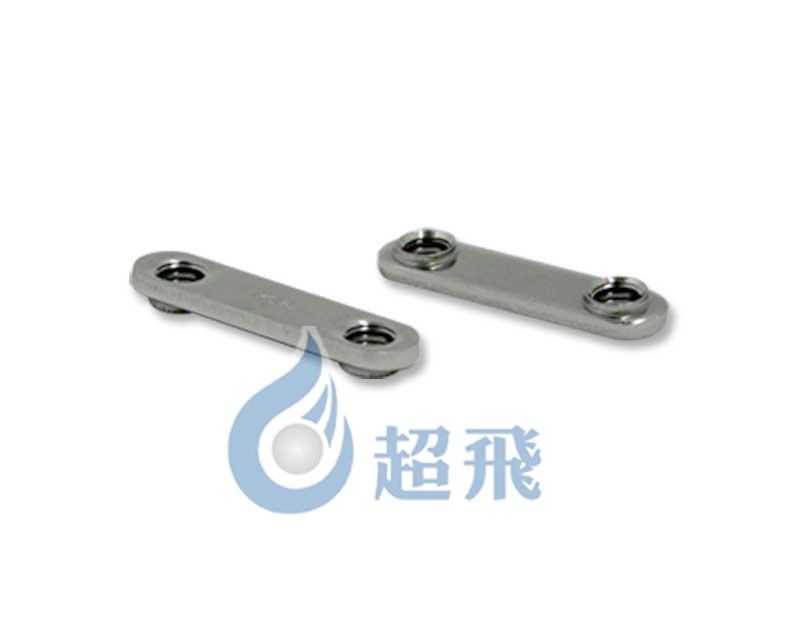

連接片-英制牙
PLATE NUTS - INCH THREAD
材質(zhì)：不銹鋼
Catalogue PN
Flange Size
Diagram
A
B
C
D
E
?F
CF-PN-133
CF1.33”
A
20.30
7.62
13.46
3.20
5.35
#8-32
CF-PN-275
CF2.75”
A
42.16
12.70
29.46
5.10
6.10
1/4-28
CF-PN-338
CF3.38”
B
44.45
12.70
27.69
5.30
-
5/16-24
CF-PN-450
CF4.50”
B
51.56
12.70
35.30
5.30
-
5/16-24
CF-PN-462
CF4.62”
B
45.80
12.70
31.60
5.30
-
5/16-24
CF-PN-600
CF6.00”
B
41.65
12.70
25.40
5.30
-
5/16-24
CF-PN-800
CF8.00”
B
44.45
12.70
28.45
5.30
-
5/16-24
CF-PN-1000
CF10.00”
B
44.45
12.70
30.23
5.30
-
5/16-24
